Generate Code39 Barcode in Microsoft® Access®

Print Code39 Bar codes in Access database

Code 39 is one of the most widely used barcode symbologies. It's quite easy to implement: just put asterisks before and after your data, then apply Barcodesoft font.

With Barcodesoft Code39 package and Microsoft® Access®, it is very convenient to print code39 bar code from your Windows computer and desktop printer.

1. Install code39 demo on your computer.

2. Open DOS prompt. If you are using Windows Vista or Windows 7, please Open DOS prompt as administrator.

Please go to the following folder
CD C:\Program Files\Common Files\Barcodesoft\FontUtil
Type in the following DOS command to register crUFLbcs.dll
regsvr32 crUFLbcs.dll

code39 barcode excel DLL DOS registration

3. Start Microsoft® Access® first.

If you are using Access 2000 or 2003, click menu ===> Tools ==> Macro ===> Security. Choose Low security level.
code39 Access Macro Security

If you are using Access 2007 / 2010 / 2013 / 2016 / 2019, click the Microsoft Office Button.
Office 2010 button Office 2016 button Office 2019 button

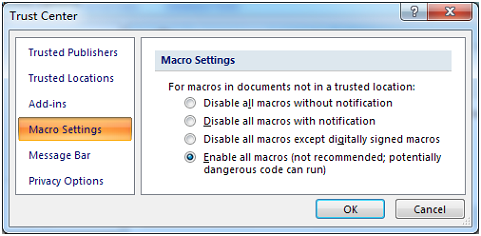

Then click Access Options, choose Trust Center. In the Macro Settings category, under Macro Settings, choose "Enable all macros" as shown below.

code39 Access Macro Setting

4. Press ALT + F11 to open Microsoft® Visual Basic editor.
code39 Access VBA

5. From Visual Basic editor, choose menu Tools ===> References. It will popup a dialog. Click Browse button and choose cruflbcs.dll from your working folder.
Usually it's under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder.
Click the checkbox beside crUFLBcs 4.0 Type Library as shown below. Then click OK button.

code39 add reference

6. Press Ctrl+M, it will popup a dialog, choose barcodesoft.bas under C:\Program File\CommonFiles\Barcodesoft\Fontutil folder. Then click "Open".

If you don't find barcodesoft.bas, please download it from code39.
code39 import vba

Or you can copy and paste from code snippet below

Public Function Code39(strToEncode As String) As String
Dim obj As cruflBCS.CLinear
Set obj = New cruflBCS.CLinear
Code39 = obj.Code39(strToEncode)
Set obj = Nothing
End Function

Public Function Code39Check(strToEncode As String) As String
Dim obj As cruflBCS.CLinear
Set obj = New cruflBCS.CLinear
Code39Check = obj.Code39Check(strToEncode)
Set obj = Nothing
End Function

Public Function USSCode39(strToEncode As String) As String
Dim obj As cruflBCS.CLinear
Set obj = New cruflBCS.CLinear
USSCode39 = obj.USSCode39(strToEncode)
Set obj = Nothing
End Function

7. Close Visual Basic and go back to your Access database. Now, create a report in Design view and type in one of the following macros in the field where you want to show code39 barcode before apply font typeface, such as Code39mHr:
=code39([data.code])
=code39Check([data.code])
=USSCode39([data.code])

Please notice that 'data' is the Table name, 'code' is the Field name.

code39 barcode excel macro

8. Right click the field you want to display code39 barcode. Choose Properties from context menu. Apply one of the appropriate font typefaces to the field, such as code39mHr.

code39 import vba
